ELT100E2D, EMERSON (US Nidec), 100HP, 230/460V, 3 Phase Motor
ELT100E2D has been replaced by Emerson (now US Nidec) with an updated motor. IN STOCK / READY TO SHIP

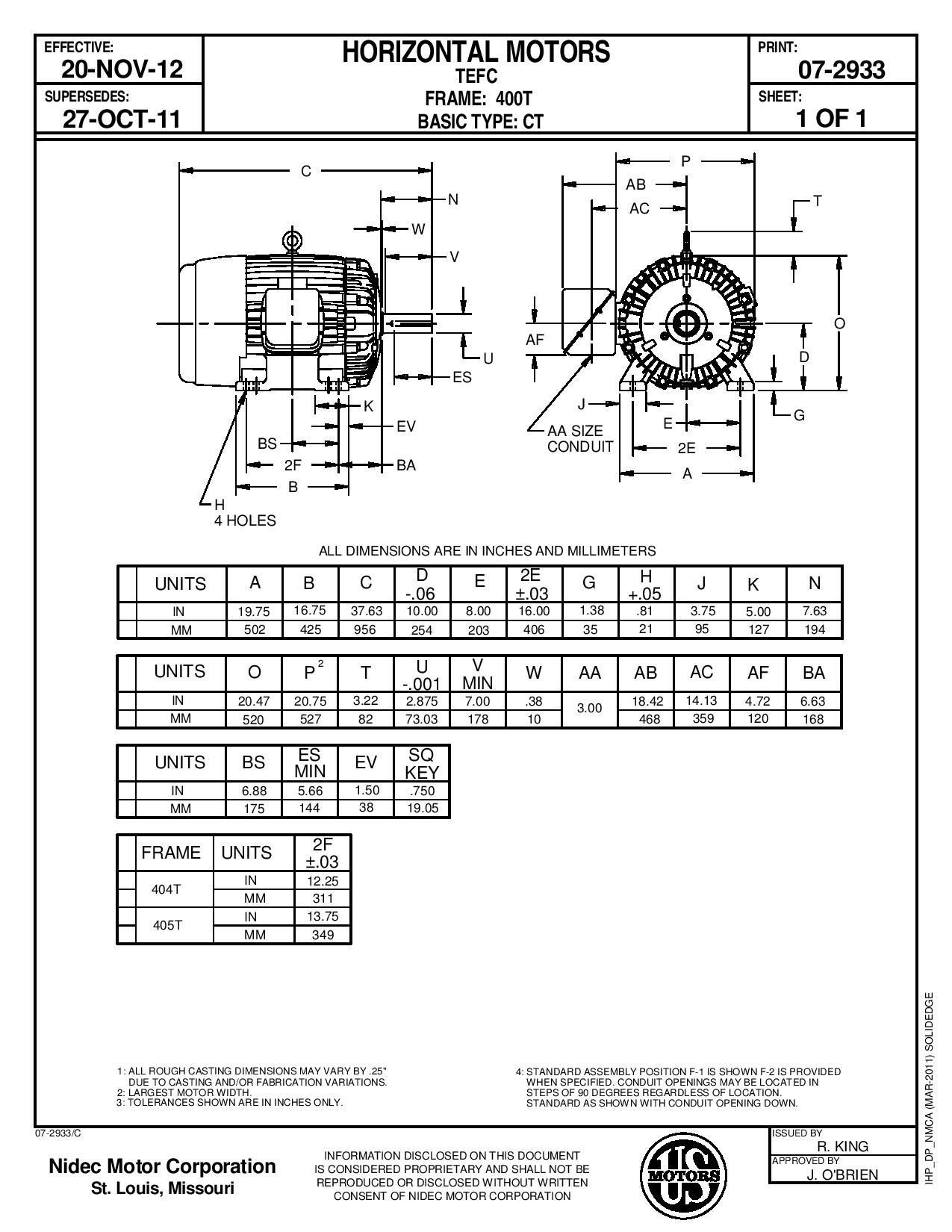

*Verify with specs and drawing for same fit and function
Specifications
==================
Elecrical Type Three Phase
Phase Three
Voltage 230/460
Overload Protector None
Amperage 229/115
Efficiency 95.4
Service Factor 1.15
Frame 405T
Enclosure TEFC
Material Cast Iron
HP 100
Rotation Reversible
RPM 1800
Bearings 6216-J/C3,6316-J/C3
# Of Speeds 1
We know you need it FAST. We ship from several warehouses strategically located across the U.S.: CA,CT,FL,IL,MN,MD,MI,MO,NC,TN,TX. We strive to ship same day.
We also take orders over the phone: (603) 413-0404 or fulfill quotes via email, send to backoffice@tek4ufast.com.
We process orders until , shipping from the West Coast after .
We offer Next Day Air - call for details.
2018/12/04 mm
ELT100E2D Replacement Motor
