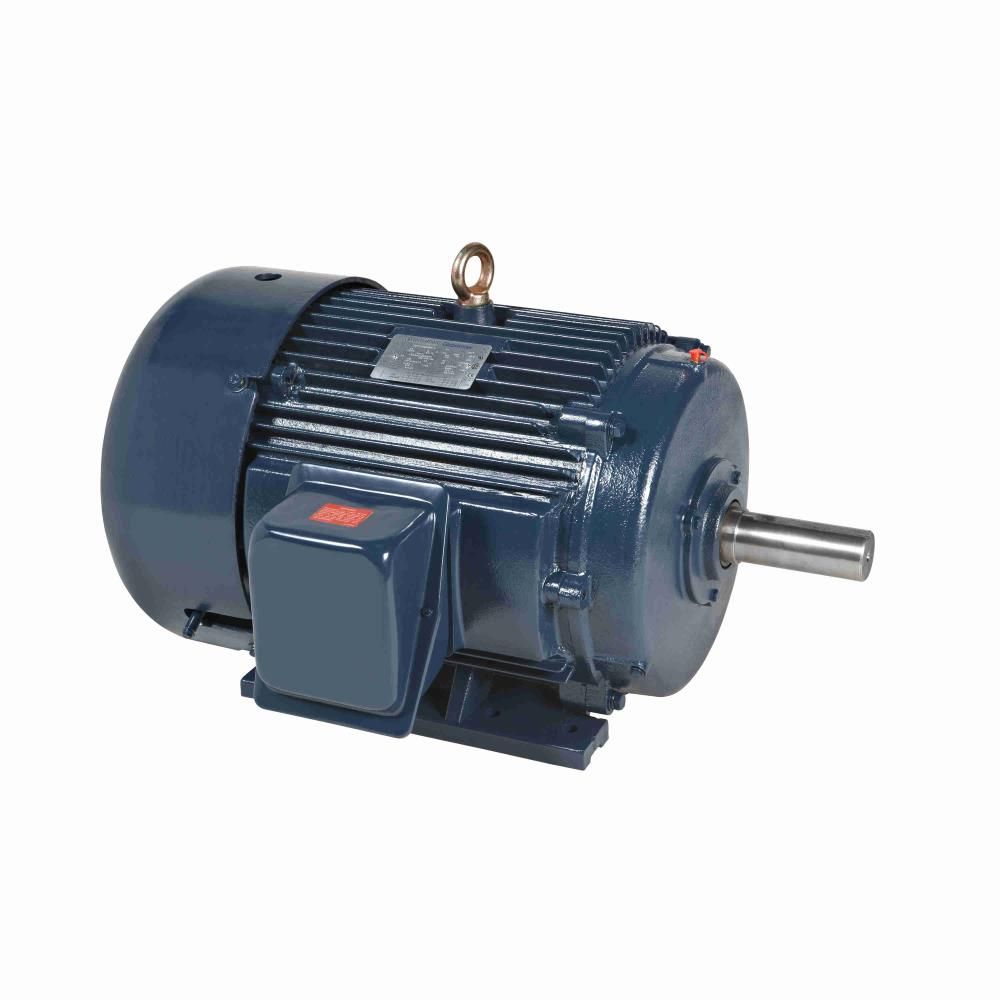

T48041, AO Smith(now Century), 100HP, 575V, General Purpose Motor
T48041 has been replaced by Marathon with an updated motor. IN STOCK / READY TO SHIP

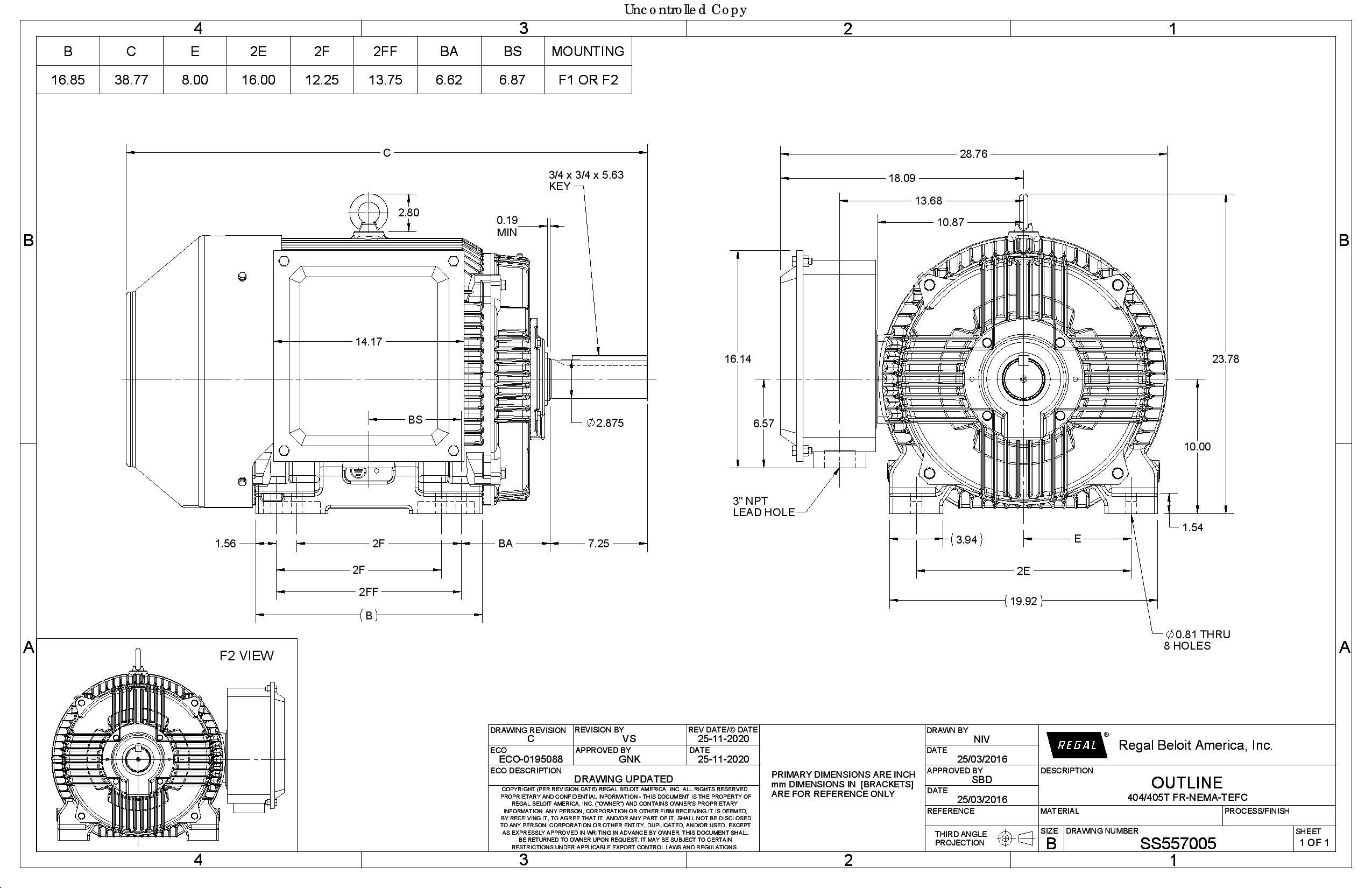

*Verify with specs and drawing for same fit and function
Specifications
Phases 3
Frame 405T
Horsepower 100
Horsepower (kw) 75.0
RPM 1785
Speeds 1
Enclosure Totally Enclosed Fan Cooled
Voltage 575
Current 90.5
Rotation Reversible
Bearings Ball
Overload Protection No
Efficiency 95.4
Service Factor 1.15
We know you need it FAST. We ship from several warehouses strategically located across the U.S.: CA,CT,FL,IL,MD,MI,MO,NC,TN,TX. We strive to ship same day.
We also take orders over the phone: (603) 413-0404 or fulfill quotes via email, send to backoffice@tek4ufast.com.
We process orders until , shipping from the West Coast after .
We offer Next Day Air - call for details.
2021/05/18 tb
T48041 Replacement Motor
