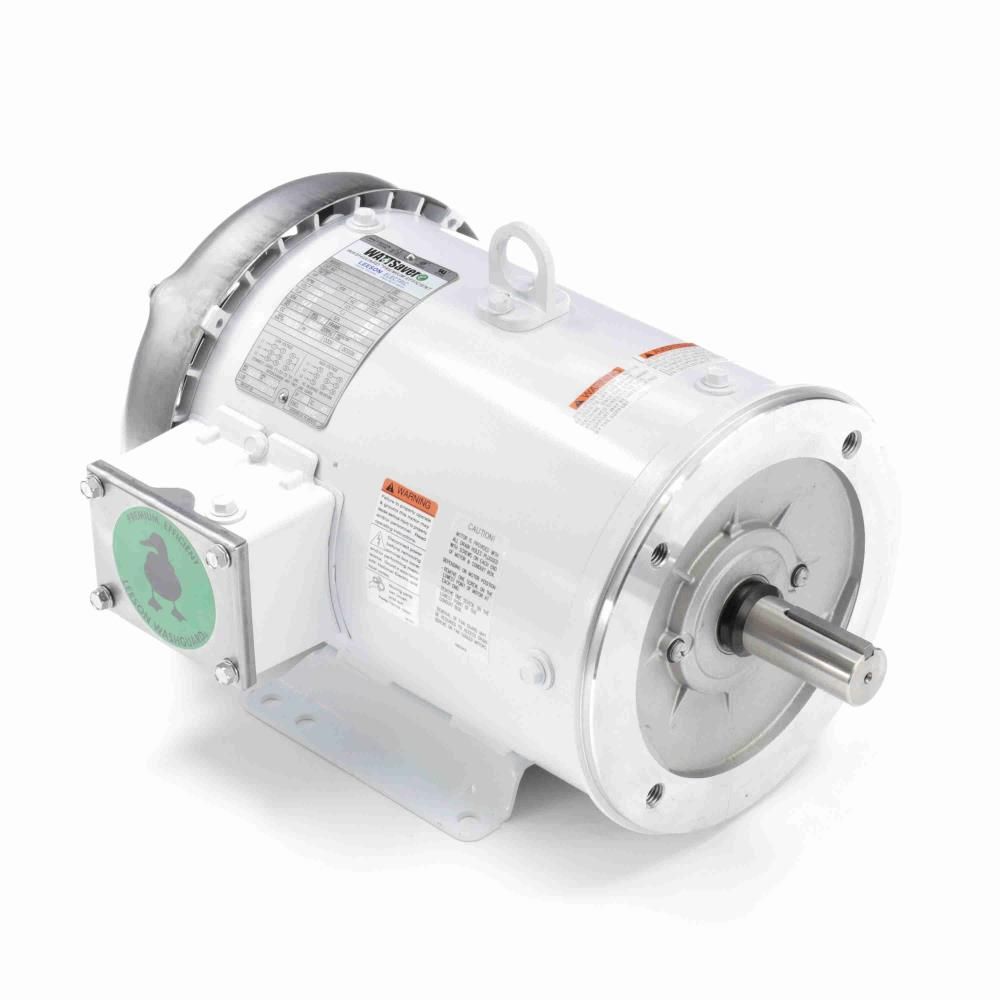

132201.00, Leeson, 5HP, 230/460 V, White Epoxy Washdown Motor
1 In Stock / Ready to Ship
Leeson 132201.00 White Epoxy Washdown Motor
We ship from several warehouses across the U.S. to get it to you FAST. We work hard to keep
our prices below our competition.
Nameplate Specifications
====================
HP 5
Frequency 60 Hz
Voltage 230/460
Current 12.6/6.3 A
Speed 1760 rpm
Service Factor 1.15
Phase 3
Duty Continuous
Frame 184TC
Enclosure Totally Enclosed Fan Cooled
Number of Speeds 1
Technical Specifications
===================
Electrical Type Squirrel Cage Induction Run
Rotation Reversible
Material Rolled Steel
Shaft Type T
Overall Length 15.47 in
Frame Length 10.00 in
Shaft Diameter 1.125 in
Shaft Extension 2.75 in
