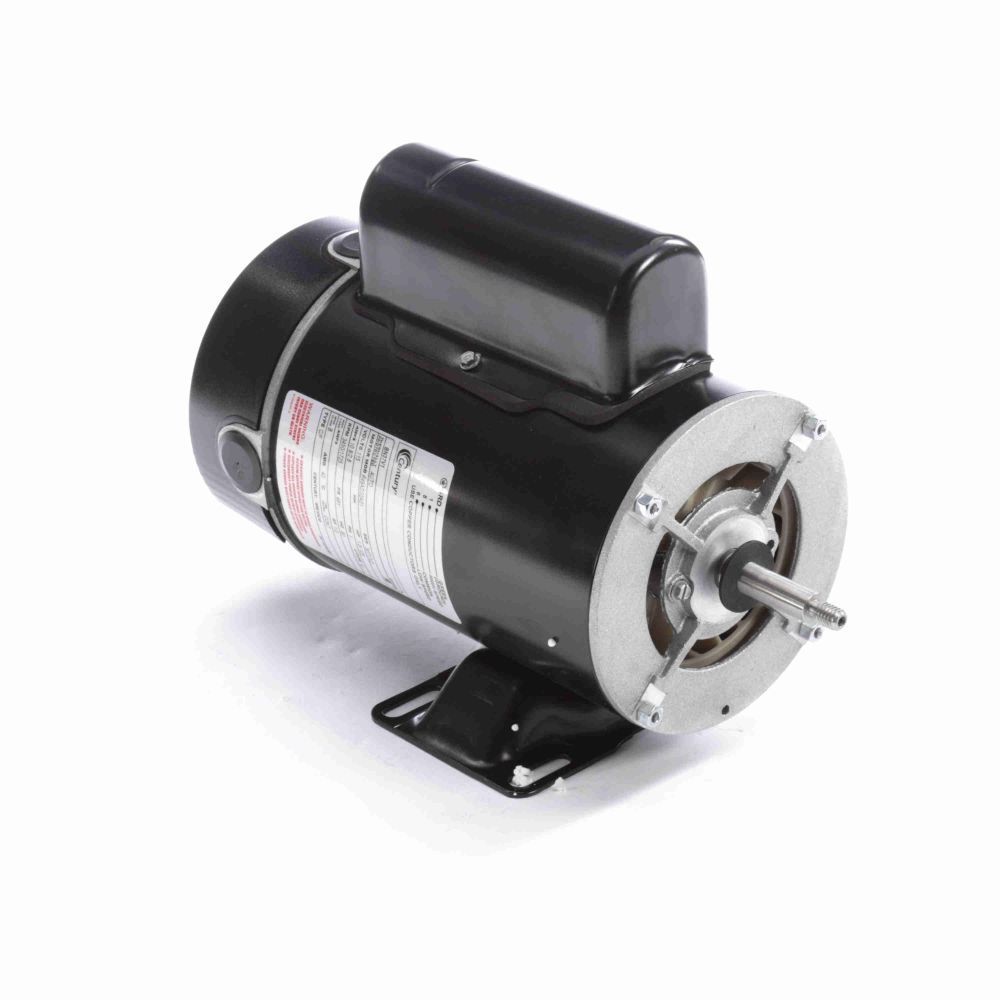

181327PJ, Century, 1HP, 115V, Spa Motor
35 In Stock / Ready to Ship
Century - 181327PJ REPLACEMENT MOTOR

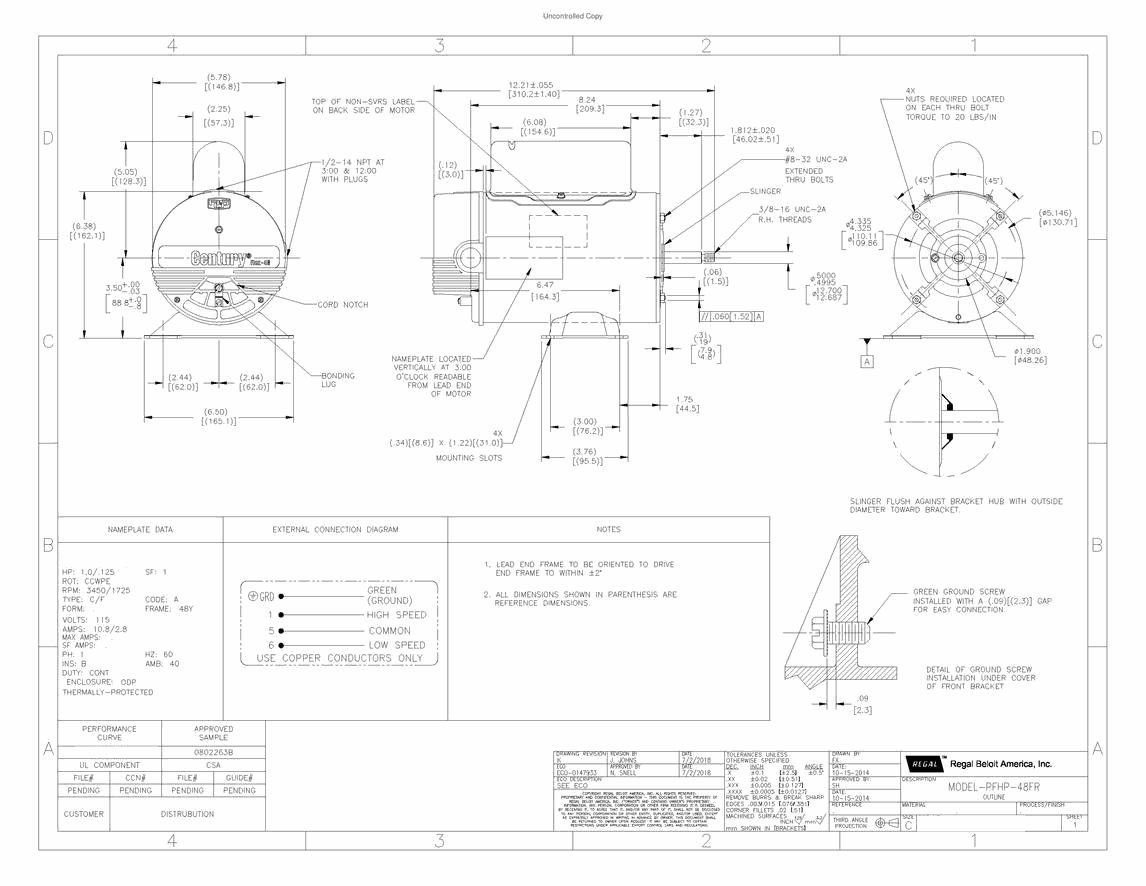

The specs and drawing below are for your assurance of same fit and function.
IN STOCK / READY TO SHIP
SPECIFICATIONS:
Phase: 1
Output HP: 1.0/.125 Hp
Voltage: 115 V
Speed: 3450/1725 rpm
Service Factor: 1
Frame: 48Y
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Frequency: 60 Hz
Current: 10.8/2.8 A
Duty: Continuous
Number of Speeds: 2
Two Speed
12 & 3 O'clock Conduit Entries
3-1/2" Shaft Height
Four Thru Bolts on a 5.146 Bolt Circle
Flex 48 LASAR Line Low Amp Start and Run with 48/56 Base Mounting
48/56 Base Mounting
Threaded Shaft
Rigid Base
*** Title 20 CCR section 1605.3(g)(5): We are unable to ship this product to California
Call for California Compliant motor inifo
Tek4UFast is the leader in sorting out all these motor cross references .... Trades-people: When you need to replace a motor, for your convenience just SMS a picture of the nameplate to (603) 413-0404 and we will get you a quote ASAP. Get quotes on garage door openers, gate openers, electric switchgear, capacitors, fan blades, blower wheels, power drive (shafts, bearings, sprockets, sheaves, timing belts .....) via SMS picture as well.
ALL Motors are NEW, not factory seconds or lesser in ANY way from your original motor. Most every replacement motor is manufactured by the same manufacturer as the original, and is the original manufacturer's identified replacement. All motors have a one year factory warranty (or better). We strive hard to keep our prices below the competition. We ship to Canada, Mexico and most any country (we ship international).
We know you need it FAST. We ship from several warehouses strategically located across the U.S.: CA,CT,IL,MI,MO,SC,TX. We strive to ship same day.
We also take orders over the phone: (603) 413-0404 8:30-5:00 EST or fulfill quotes via email, send to backoffice@tek4ufast.com.
We offer Next Day Air - call for details.
