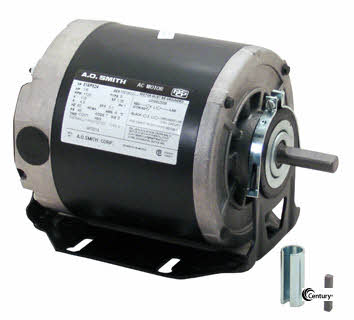

316P759, AO Smith (now Century), 1/3HP, 115/230V, Replacement Direct Drive Motor
35 In Stock / Ready to Ship
AO Smith 316P759 Belt Drive Motor is now obsolete. We offer an updated replacement motor.from Century the original manufacturer.

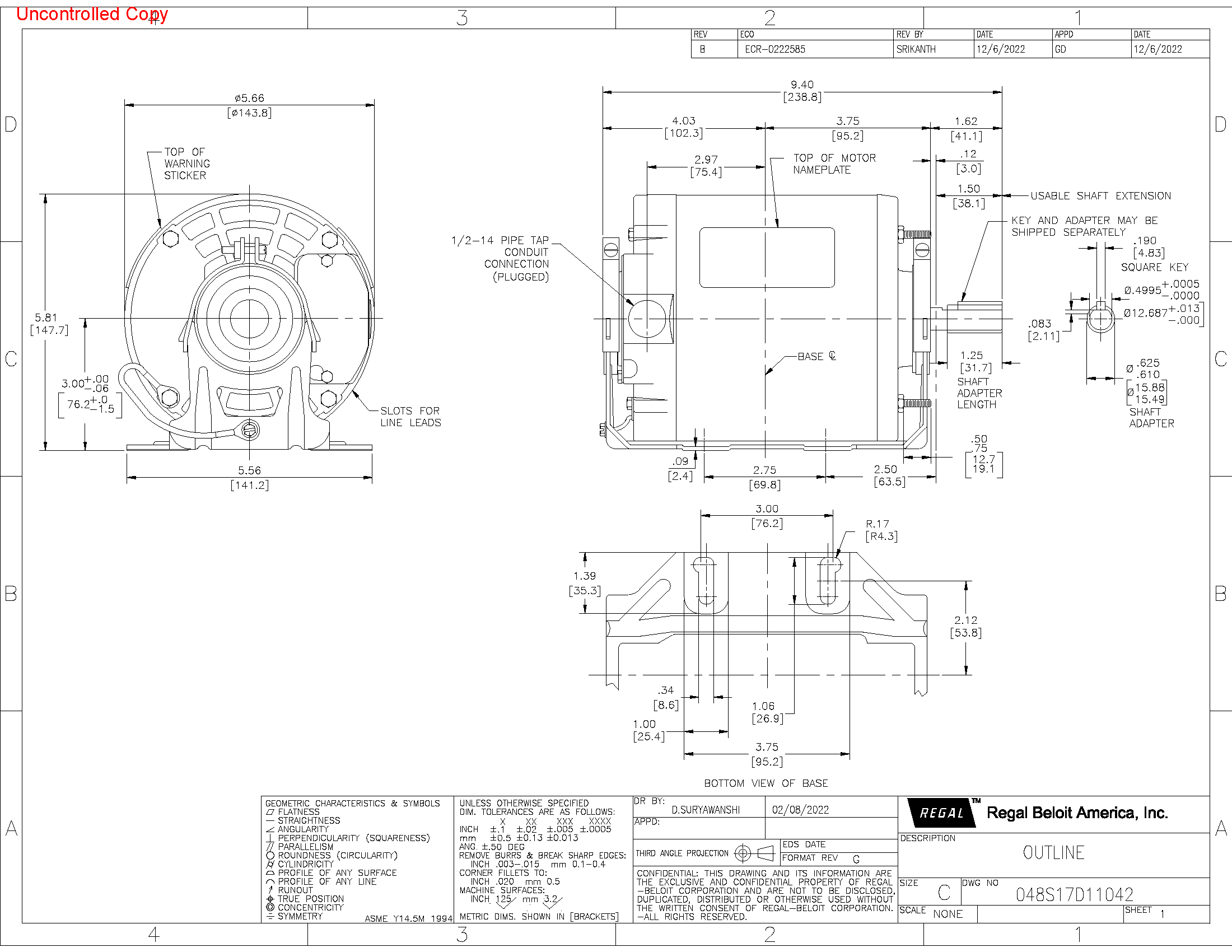

The specs and drawing below are for your assurance of same fit and function.
Electrical Type Split Phase
Phase Single
Frame 48Y
HP 1/3
Kilowatts 0.25
Speeds 1
Enclosure Open
Voltage 115/230
RPM 1725
Amperage 6.0/3.0
Rotation Reversible
Material Rolled Steel
Frequency(hz) 60
Overload Protector Automatic
Service Factor 1.35
Mounting Type Resilient Base
Bearings Ball
Shaft 0.5 x 1.62 Keyed Adapter
Tek4UFast is the leader in sorting out all these motor cross references .... Trades-people: When you need to replace a motor, for your convenience just SMS a picture of the nameplate to (603) 413-0404 and we will get you a quote ASAP. Get quotes on garage door openers, gate openers, electric switchgear, capacitors, fan blades, blower wheels, power drive (shafts, bearings, sprockets, sheaves, timing belts .....) via SMS picture as well.
ALL Motors are NEW, not factory seconds or lesser in ANY way from your original motor. Most every replacement motor is manufactured by the same manufacturer as the original, and is the original manufacturer's identified replacement. All motors have a one year factory warranty (or better). We strive hard to keep our prices below the competition. We ship to Canada, Mexico and most any country (we ship international).
We know you need it FAST. We ship from several warehouses strategically located across the U.S.: CA,CT,IL,MI,MO,SC,TX. We strive to ship same day.
We also take orders over the phone: (603) 413-0404 8:30-5:00 EST or fulfill quotes via email, send to backoffice@tek4ufast.com.
We offer Next Day Air - call for details.
