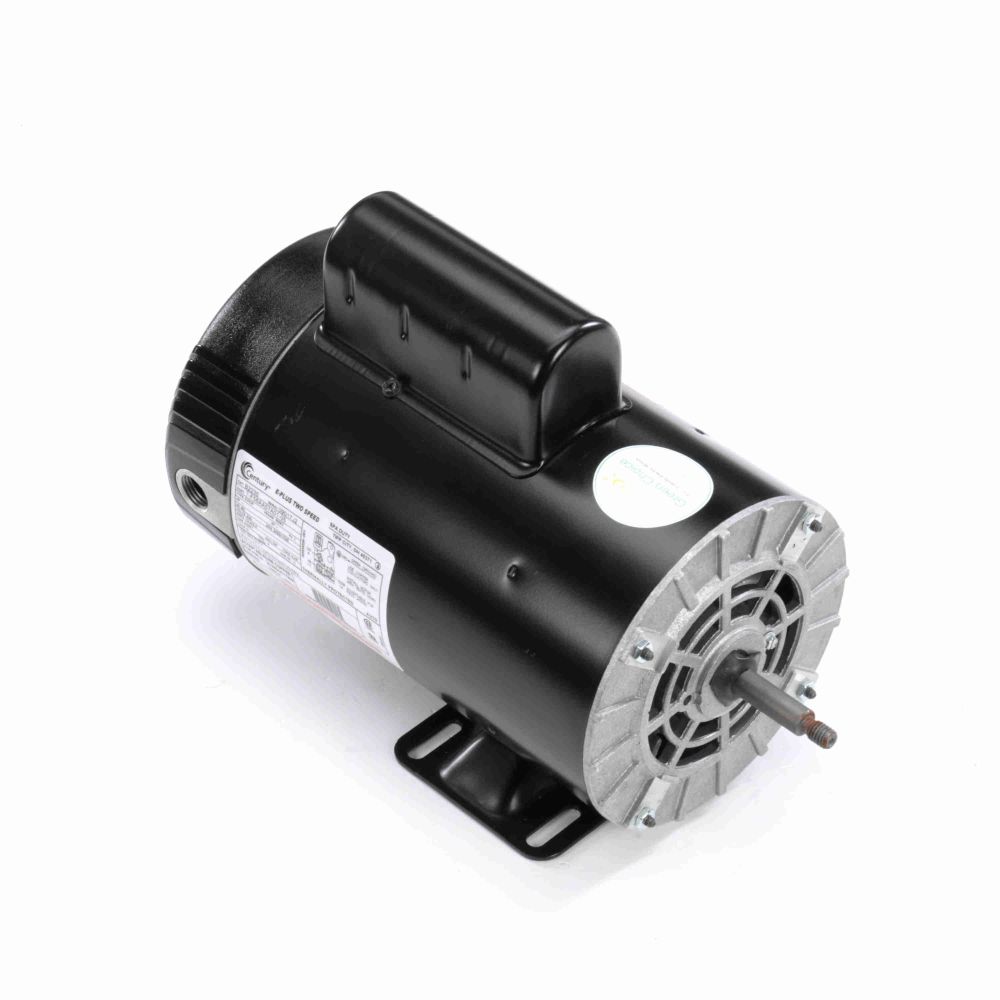

5KCP49UN9089X, Replacement Spa/Pool Pump Motor
1 In Stock / Ready to Ship
The now obsolete 5kcp49un9089x has been replaced with a US Nidec suggested after market replacement.
The specs and drawing below are for your assurance of same fit and function.
Phase: Single | Electrical Type: Cap Start | HP: 2 1/2 | RPM: 3600 | Frame: 56Y | Diameter: 6.5" | Enclosure: ODP | Voltage: 230 | Rotation: CCWSE | Overload Protection: Auto | Shaft Type: Single | Bearings: Ball / Ball | Material: Rolled Steel | Amperage: 10.5/3.8 | Service Factor: 1.00 | Mounting Type: Rigid Base / Extended Studs
Specifications
=============
Phase Single
Electrical Type Cap Start
HP 2 1/2
RPM 3600
Frame 56Y
Diameter 6.5"
Enclosure ODP
Voltage 230
Rotation CCWSE
Overload Protection Auto
Shaft Type Single
Bearings Ball / Ball
Amperage 10.5/3.8
Service Factor 1.00
Mounting Type Rigid Base / Extended Studs
