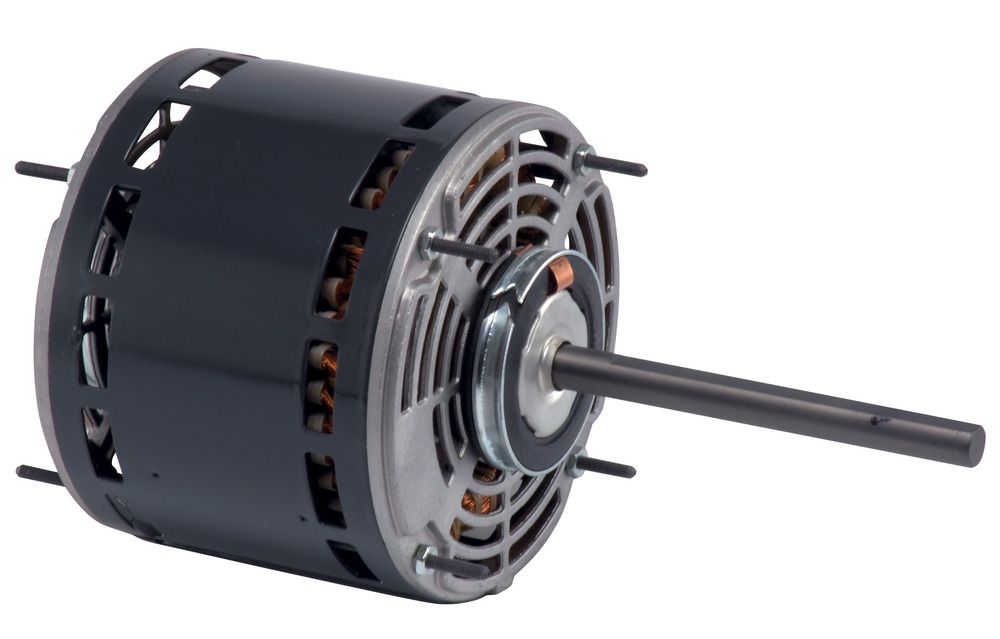

7124-1083, Fasco, Direct Drive Motor
7124-1083 is now obsolete. We offer a US Nidec replacement motor
The specs and drawing below are for your assurance of fit and function.
Notes: Connect for CWLE; cut shaft as needed
Specifications:
=================
Amps: 11.1
Bearings: Ball
Capacitor: 25MFD/370VAC
Enclosure Type: OAO (Open Air Over)
Frame: 48Y
HP: 1
Hz: 60
Insulation Class: B
Manufacturer Model #: K055TMY9594012B
Maximum Ambient Temperature: 40° C
Mounting: Resilient Ring/Stud
Number of Speeds: 3
Phase: 1
Product Type: PSC (Permanent Split Capacitor)
Rotation: Reversible
RPM: 1625
Service Factor: 1.00
Thermal Protection: Automatic
Volts: 115
