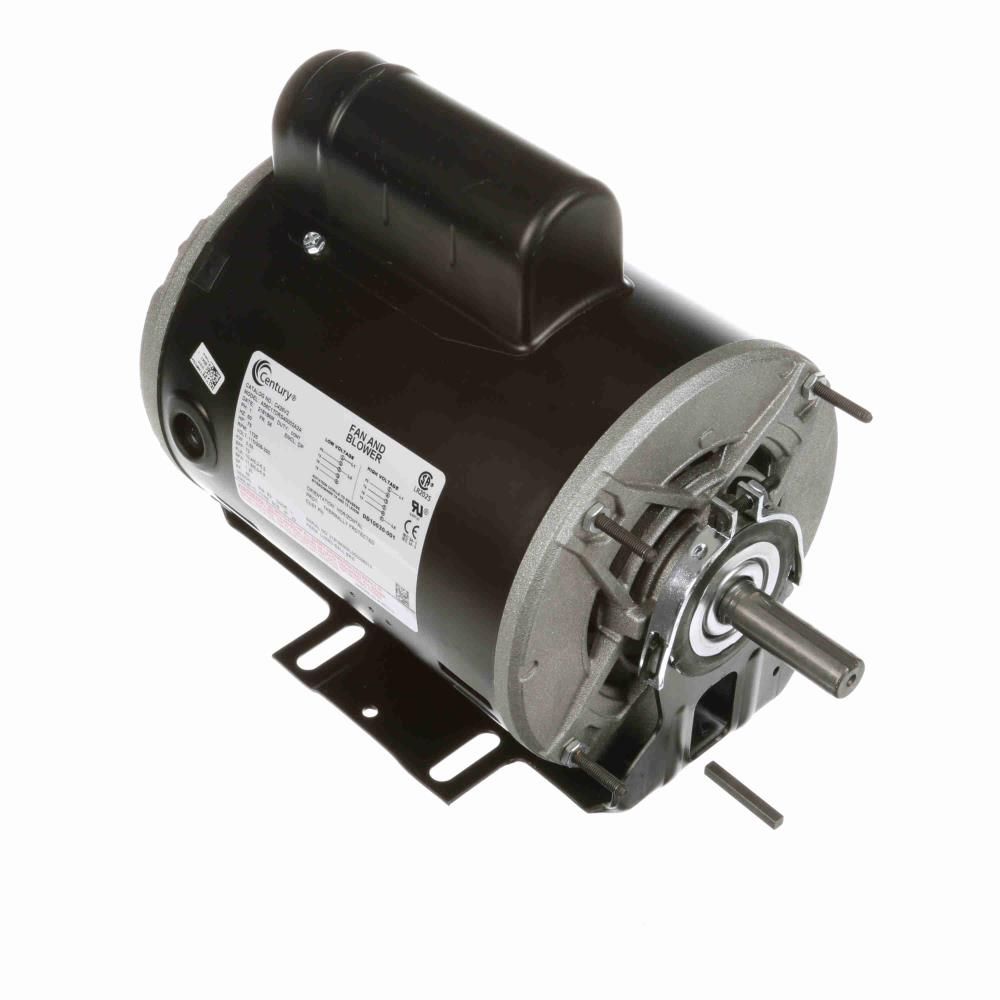

C48B20A01, AO Smith, 3/4HP, 115/208-230V, Blower Motor

C48B20A01, AO Smith, 3/4HP, 115/208-230V, Blower Motor

304.66 304.66 304.66 USD

304.66

Add to Cart

C48B20A01 has been replaced by Century with an updated motor. IN STOCK / READY TO SHIP

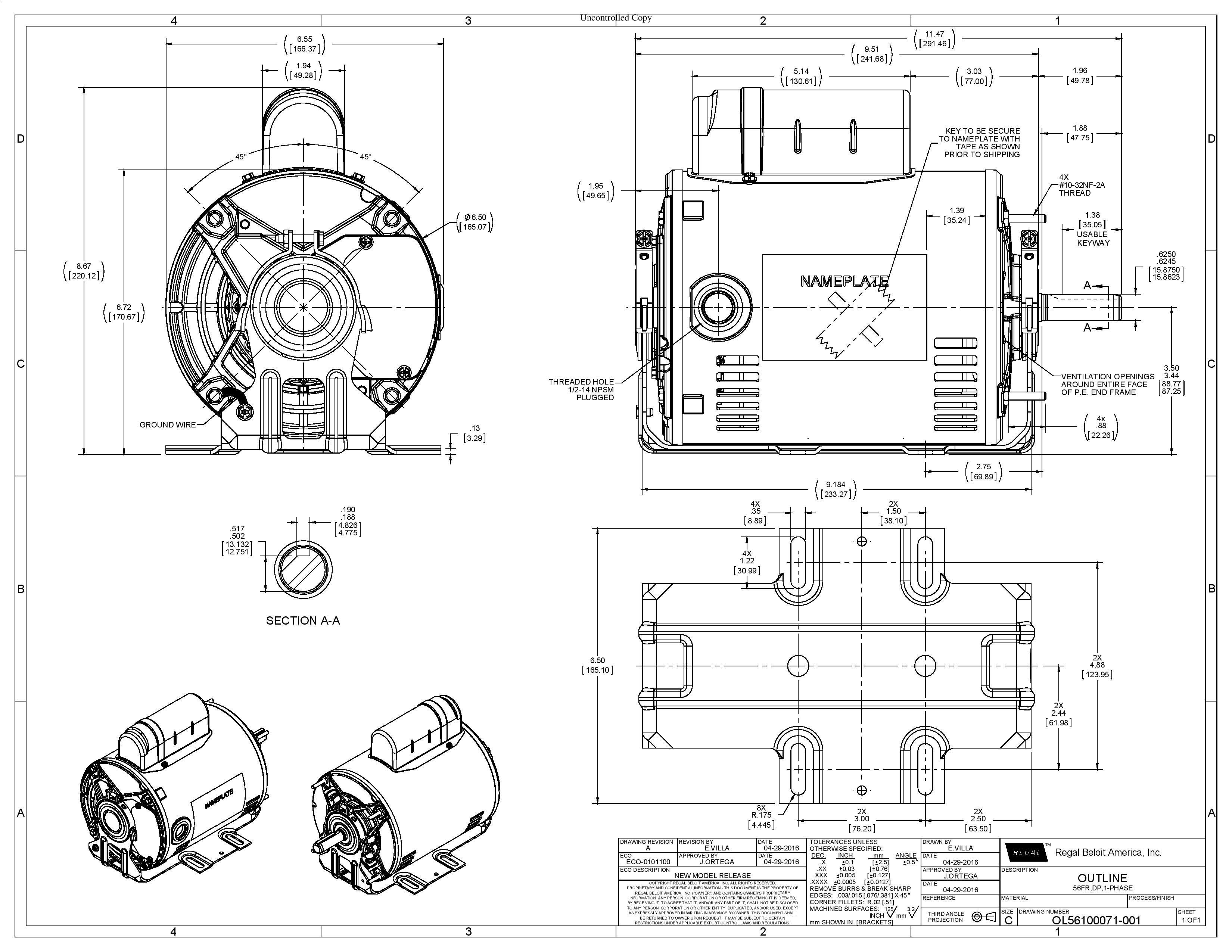

*Verify with specs and drawing for same fit and function

Electrical Type Capacitor Start Induction Run
Phase 1
Frame 56
HP 3/4
Kilowatts 0.56
Speeds 1
Enclosure ODP
Current (amps) 10.4/5.2-5.2
Voltage 115/208-230
RPM 1725
Rotation (SE) Selective Counterclockwise
Frequency (hz) 60
Bearings (DE/ODE) Ball/Ball
Overload Protection Thermally Protected
Service Factor 1.25
Material Rolled Steel


We know you need it FAST. We ship from several warehouses strategically located across the U.S.: CA,CT,FL,IL,MD,MI,MO,NC,TN,TX. We strive to ship same day.

We also take orders over the phone: (603) 413-0404   or fulfill quotes via email, send to backoffice@tek4ufast.com.

We process orders until , shipping from the West Coast after .

We offer Next Day Air - call for details.

2021/04/26 mm

C48B20A61 Replacement Motor
