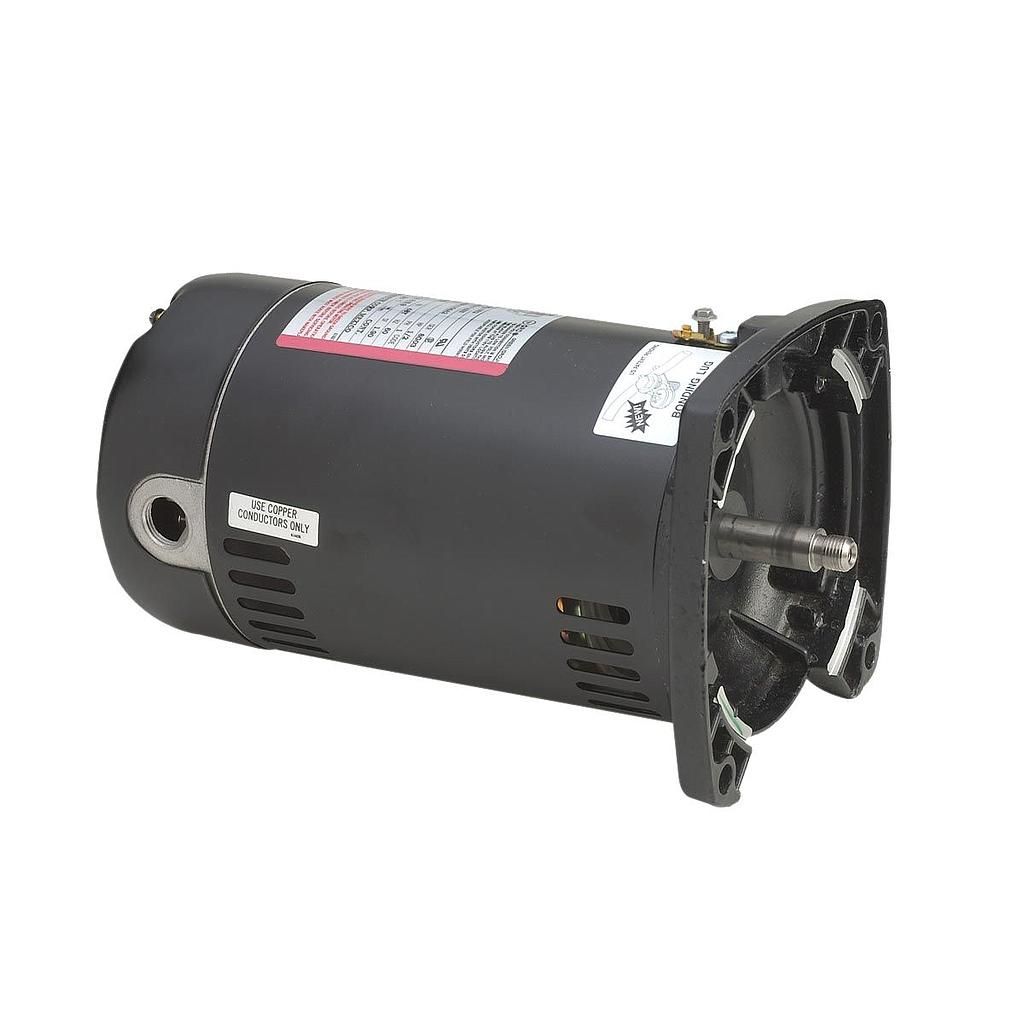

C48D32A04, AO Smith (now Century), 3/4HP, 115/230V, Square Flange Pool Pump Motor
35 In Stock / Ready to Ship
A.O. Smith C48D32A04 is now obsolete. We offer an updated DIRECT replacement from Century, the original manufacturer.
The specs and drawing below are for your assurance of fit and function.
We ship from several warehouses across the U.S. to get it to you FAST. We work hard to keep
our prices below our competition.
[Electrical Type] Cap Start [HP] 3/4 [KW] 0.56 [Frame] 48Y [Diameter] 5.6 [Enclosure] ODP [Phase] Single [Voltage] 230/115 [Rotation] CCWPE [Overload] Auto [Material] Rolled Steel [Bearings Type] Ball / Ball [Bearings SE Type] Ball [Bearings OSE Type] Ball [Mounting] Square Flange [Orientation] Horizontal [Amperage] 7.6/15.3 [Shaft Type] Threaded [Shaft Extension] 0.906" [Shaft Diameter] 0.625"
Specifications
=================
Electrical Type Cap Start
HP 3/4
Frame 48Y
Diameter 5.6"
Enclosure ODP
Phase Single
Voltage 230/115
Rotation CCWPE
Overload Auto
Mounting Square Flange
Orientation Horizontal
Amperage 7.6/15.3
Shaft Type Threaded
Shaft Extension 0.906"
Shaft Diameter 0.625"
