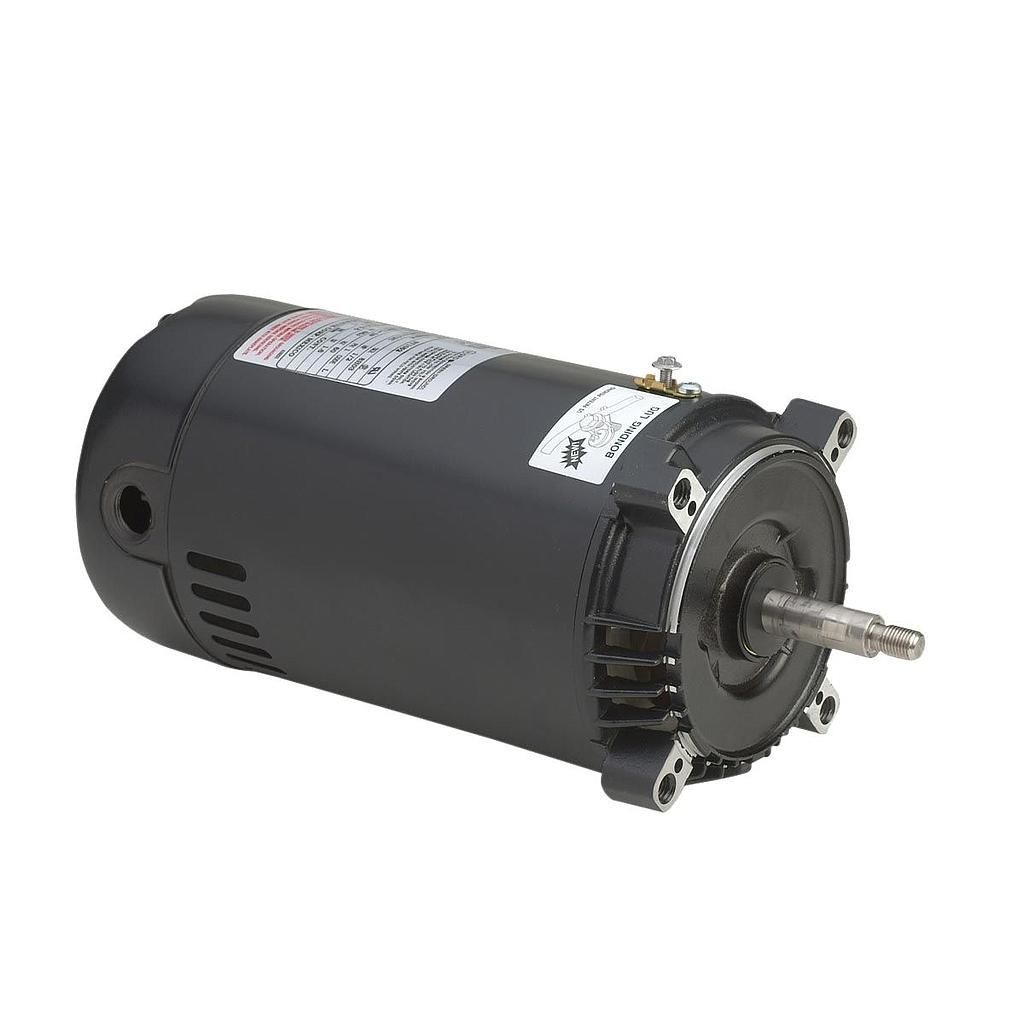

C48L2N134C2, AO Smith (now Century), 1HP, 115/230V, C-Face Pool Motor
35 In Stock / Ready to Ship
The now obsolete AO Smith (now Century) C48L2N134C2 has been replaced by Century with an updated DIRECT replacement motor.

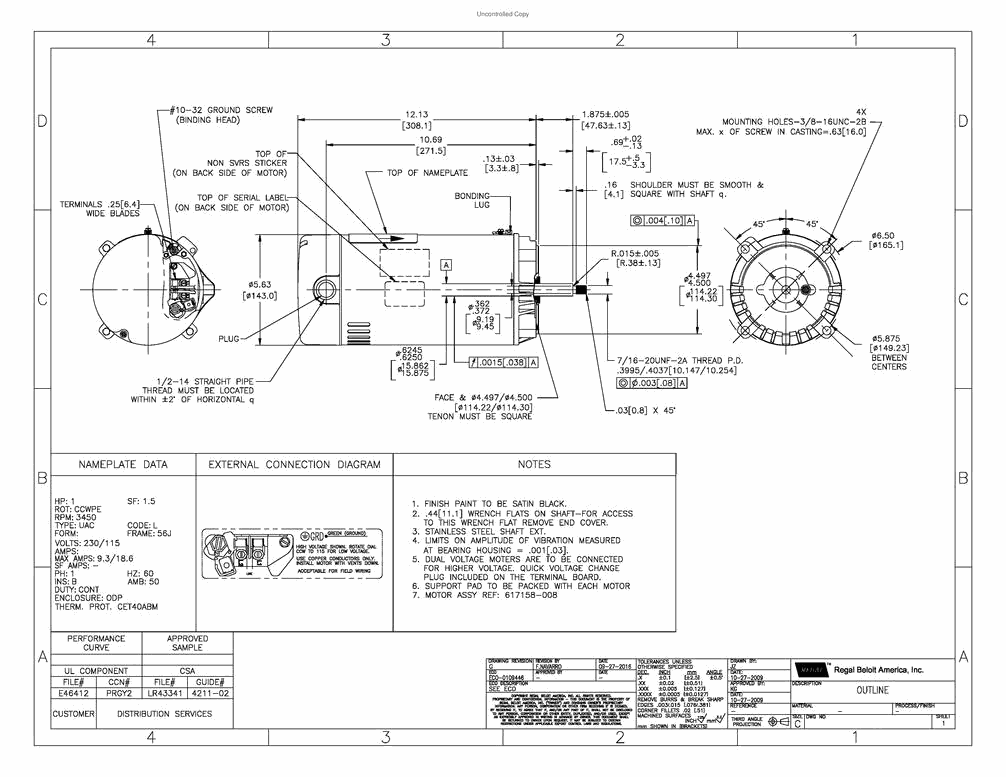

The specs and drawing below are for your assurance of same fit and function.
C-Face Pool, Capacitor Start, 1 HP, 3450 RPM - 1 Speed, 115/ 230 Volts, 18.6- 9.3 Amps, 56J Frame, Shaft Dimension: 5/8 x 1-7/8, Enclosure: Open Drip Proof, Ball Bearing
Electrical Type Cap Start
HP 1
Frame 56J
Diameter 6.5"
Enclosure ODP
Phase Single
Voltage 230/115
Rotation CCWSE
Overload Auto
Mounting C-Face
Amperage 9.3/18.6
Shaft Type Single
***NOTE: Title 20 CCR section 1605.3(g)(5): We are unable to ship this product to California.
Call us for a California Compliant Option.
California Compliant 230V Option
Tek4UFast is the leader in sorting out all these motor cross references .... Trades-people: When you need to replace a motor, for your convenience, please SMS a picture of the nameplate to (603) 413-0404 and we will get you a quote ASAP. Get quotes on garage door openers, gate openers, electric switchgear, capacitors, fan blades, blower wheels, power drive (shafts, bearings, sprockets, sheaves, timing belts .....) via SMS picture as well.
ALL Motors are NEW, not factory seconds or lesser in ANY way from your original motor. Most every replacement motor is manufactured by the same manufacturer as the original, and is the original manufacturer's identified replacement. All motors have a one year factory warranty (or better). We strive hard to keep our prices below the competition. We ship to Canada, Mexico and most any country (we ship international).
We know you need it FAST. We ship from several warehouses strategically located across the U.S.: CA,CT,FL,IL,MN,MD,MI,MO,NC,TN,TX. We strive to ship same day.
We also take orders over the phone: (603) 413-0404 or fulfill quotes via email, send to backoffice@tek4ufast.com.
We process orders until , shipping from the West Coast after .
We offer Next Day Air - call for details.
2018/06/28 mm
C48L2N134C2
