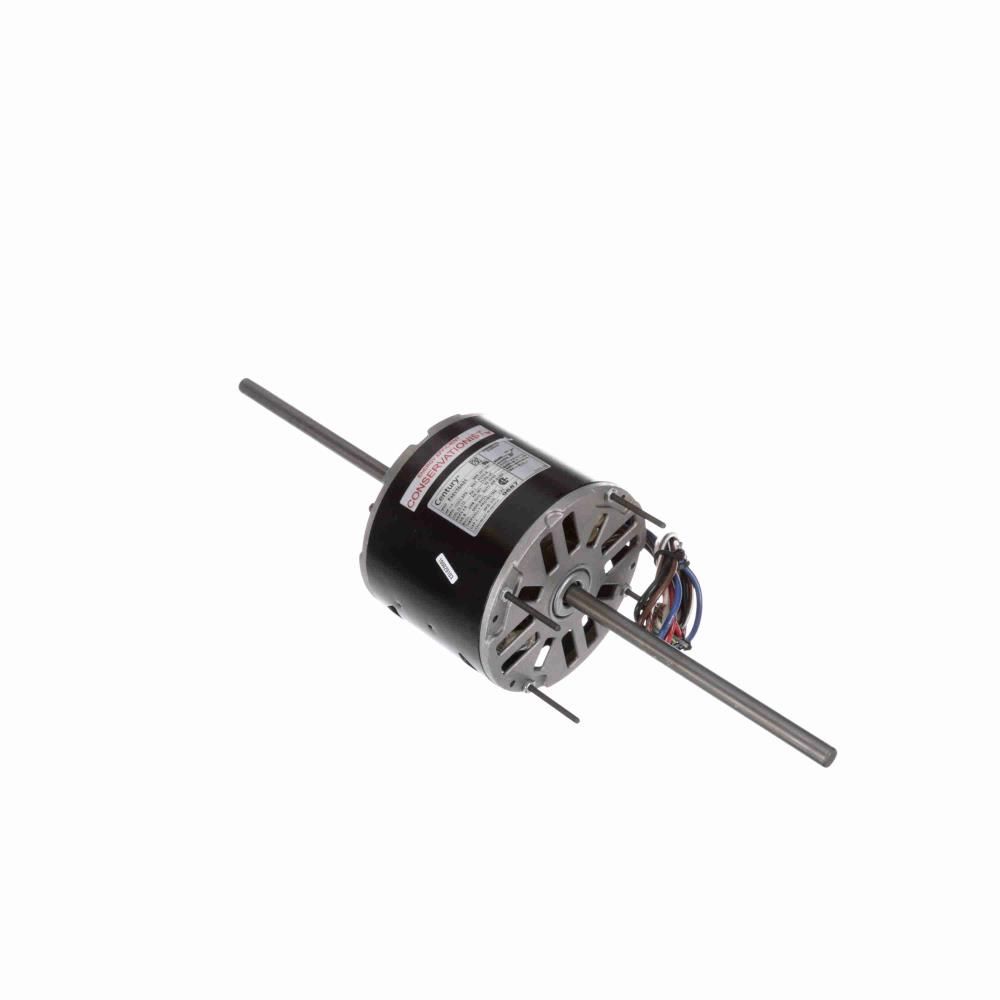

D258A, Fasco, 1/5HP, 208-230V, Fan and Blower Motor

Fasco D258A Fan and Blower Motor

We ship from several warehouses across the U.S. to get it to you FAST. We work hard to keep our prices below our competition.

Nameplate Specifications
====================
Phase: 1
HP: 1/5,1/10
Voltage: 208-230
Speed: 1550 rpm
Service Factor: 1.0
Frame: 42Y
Enclosure: Open Air Over
Frequency: 60 Hz
Current: 2.8,1.3 A
Duty: Continuous
Number of Speeds: 2

Technical Specifications
==================
Electrical Type: Permanent Split Capacitor
Rotation: Counterclockwise Lead End
Mounting: Resilient Rings
Shaft Type: Flat
Frame Length: 3.83 in
Shaft Diameter: 0.500 in
Shaft Extension: 7.8X.5X7.8 in
