F48H03A01, AO Smith(now Century), 1/3HP, 208-230V, Fan and Blower Motor
35 In Stock / Ready to Ship

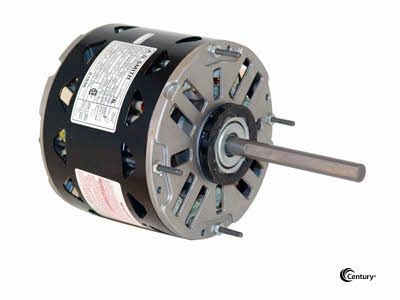

AO Smith F48H03A01 Fan and Blower Motor
[Electrical Type] PSC [HP] 1/3 [KW] 0.25 [RPM] 1075 [Frame] 48 [Diameter] 5.6" [Enclosure] ODP [Phase] Single [Voltage] 208-230 [Rotation] REV [Overload] Auto [Material] Rolled Steel [Bearings Type] Ball / Ball [Bearings SE Type] Ball [Bearings OSE Type] Ball [Mounting] Resilient Ring [Orientation] Horizontal [Amperage] 2.7 [Shaft Type] Flat [Shaft Extension] 4.500" [Shaft Diameter] 0.500"
Specifications
===========
Electrical Type PSC
HP 1/3
Frame 48
Diameter 5.6"
Enclosure ODP
Phase Single
Voltage 208-230
Rotation REV
Overload Auto
Mounting Resilient Ring
Orientation Horizontal
Amperage 2.7
Shaft Type Flat
Shaft Diameter 0.500"
Bearings OSE Type Ball
Shaft Extension 4.500"
Capacitor 5MFD/370V not included - Part # 5DV
Tek4UFast is the leader in sorting out all these motor cross references .... Trades-people: When you need to replace a motor, for your convenience, please SMS a picture of the nameplate to (603) 413-0404 and we will get you a quote ASAP. Get quotes on garage door openers, gate openers, electric switchgear, capacitors, fan blades, blower wheels, power drive (shafts, bearings, sprockets, sheaves, timing belts .....) via SMS picture as well.
ALL Motors are NEW, not factory seconds or lesser in ANY way from your original motor. Most every replacement motor is manufactured by the same manufacturer as the original, and is the original manufacturer's identified replacement. All motors have a one year factory warranty (or better). We strive hard to keep our prices below the competition. We ship to Canada, Mexico and most any country (we ship international).
We know you need it FAST. We strive to ship same day.
We ship from several warehouses strategically located across the U.S.: (CA,CT,FL,IL,MN,MD,MI,MO,NC,TN,TX).
We also take orders over the phone: (603) 413-0404 --- 8:30-5:00 EST or fulfill quotes via email, send to backoffice@tek4ufast.com.
Orders are processed until 7:00PM EST, shipping from the West Coast after 5:00PM.
We offer Next Day Air - call for details.
F48H03A01 Replacement Motor
