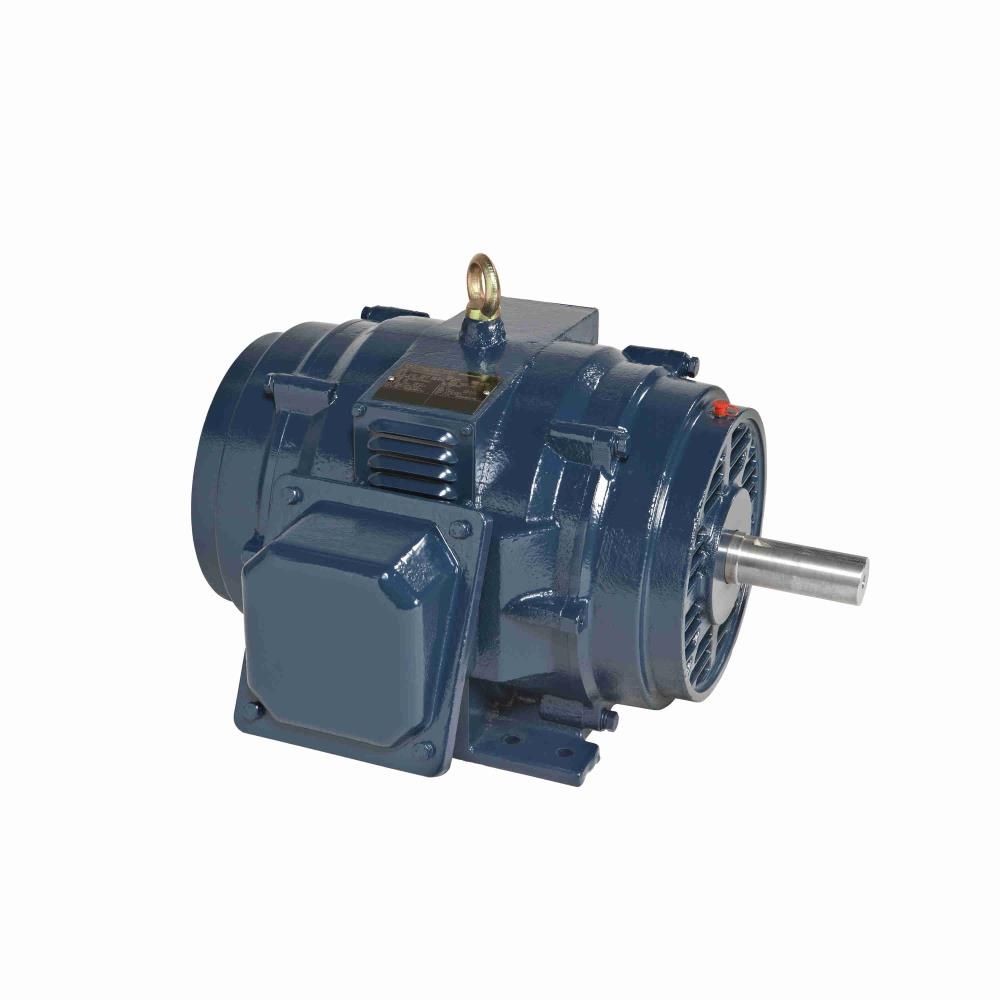

GT0067, Marathon, 30 & 25 HP·1775 & 1475 RPM, 286T, 230/460V, 3 SPD, Reversible, Electric Motor ·
14 In Stock / Ready to Ship
30 & 25 HP·1775 & 1475 RPM·Drip Proof·286T Frame·230/460V·3 SPD·Reversible·Rigid Base
HP 30 & 25
KW 22.4
RPM 1775 & 1475
Enclosure Drip Proof
Frame 286T
Voltage 230/460
Speeds 3
Rotation Reversible
Mounting Type Rigid Base
Electrical Type Squirrel Cage Inverter Rated
Material Rolled Steel
Overload Protection No Protection
Current 73/36.5 & 73/36.5
Assembly F1/F2 CAPABLE
Power Factor 82
Orientation Horizontal
Shaft_Type T
Shaft_Diameter_IN 1.875
Shaft_Extension 4.62
ServiceFactor 1.15
Efficiency 94.1
InsulationClass F
AmbientTemperature 40°C
Poles 4
Frequency 60
Duty Continuous
StartingMethod Part Wdg Start Low Volt Only & Wye Start Delta Run Or Inverter
Resistance_Main .289
CE Y
CSA Y
UL Recognized
