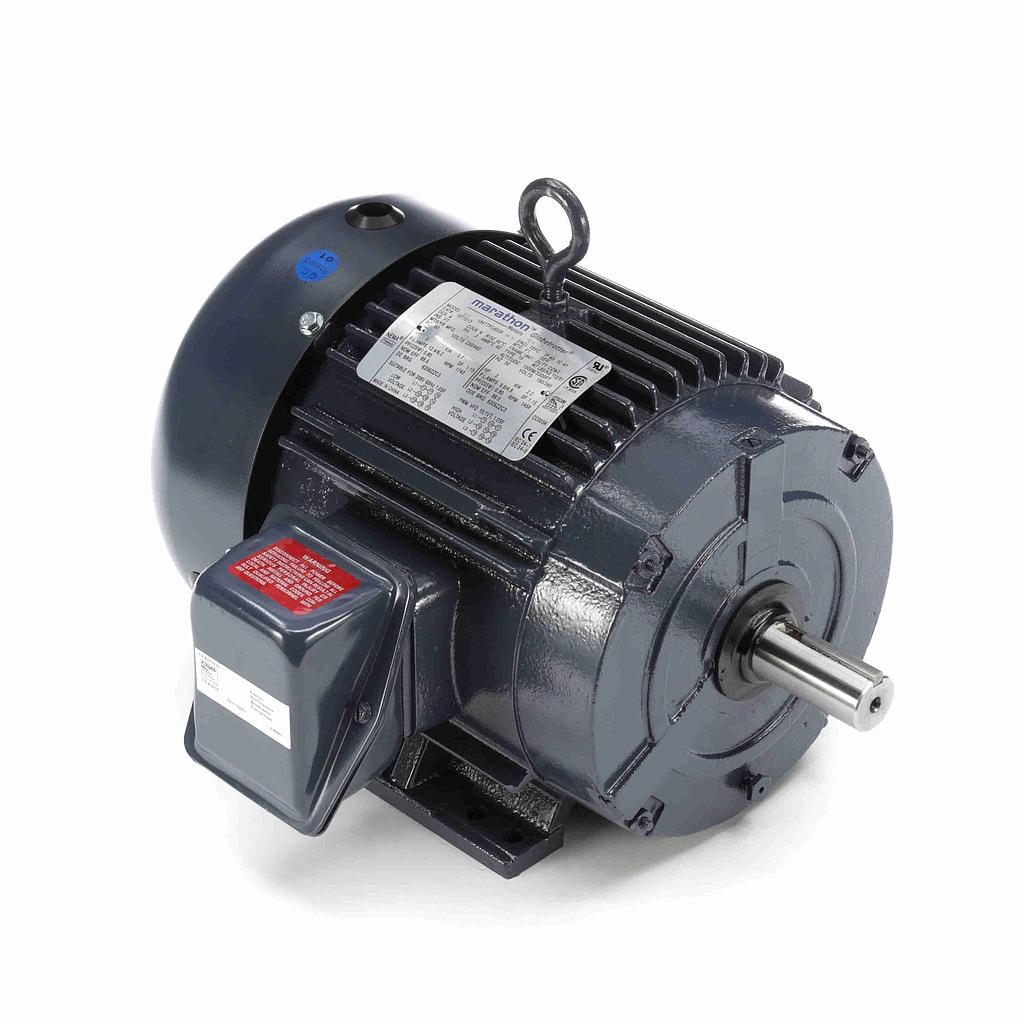

GT1013A, Marathon, Three Phase, TEFC General Purpose Motor
35 In Stock / Ready to Ship
Marathon, GT1013A
IN STOCK / READY TO SHIP
Electrical Type: Three Phase | Phase: Three | Frame: None184T | HP: 5 | Kilowatts: 3.7 | Speeds: 1 | Enclosure: TEFC | Voltage: 230/460 | RPM: 1765 | Amperage: 13.2/6.6 | Rotation: Reversible | Material: Cast Iron | Power Factor: 80 | Frequency(hz): 60 | Overload Protector: None | Efficiency: 89.5 | Service Factor: 1.15 |
Motor Specifications
==================
Electrical Type Three Phase
Phase Three
Frame None184T
HP 5
Kilowatts 3.7
Speeds 1
Enclosure TEFC
Voltage 230/460
RPM 1765
Amperage 13.2/6.6
Rotation Reversible
Material Cast Iron
Power Factor 80
Frequency(hz) 60
Overload Protector None
Efficiency 89.5
Service Factor 1.15
Packaging
===============
Width (in) 14.48
Length (in) 16.53
Height (in) 18.42
Weight (lbs) 99.25
Features
==========================
Ambient (Celsius): 40°C
Duty: Continuous
Hazardous Location: DIVISION 2 T2B
Insulation Class: F
IP Code: 55
KVA Code: K
Poles: 4
Resistance Main: 2.75
Starting Type: Line Or Inverter
About This Product
====================
Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
Hazardous Duty Division 2, Zone 2, Class I, Groups A,B,C,D, Temperature code T2B
CONSTANT 10:1/VARIABLE 20:1
IP55 enclosure on cast iron frames
Inverter Duty 10:1 Variable Torque and up to 10:1 Constant Torque
Inverter Duty 20:1 Variable Torque and 10:1 Constant Torque
Class F Insulation
Standard F1, reversible to F2 assembly. Dual frame mounting holes.
