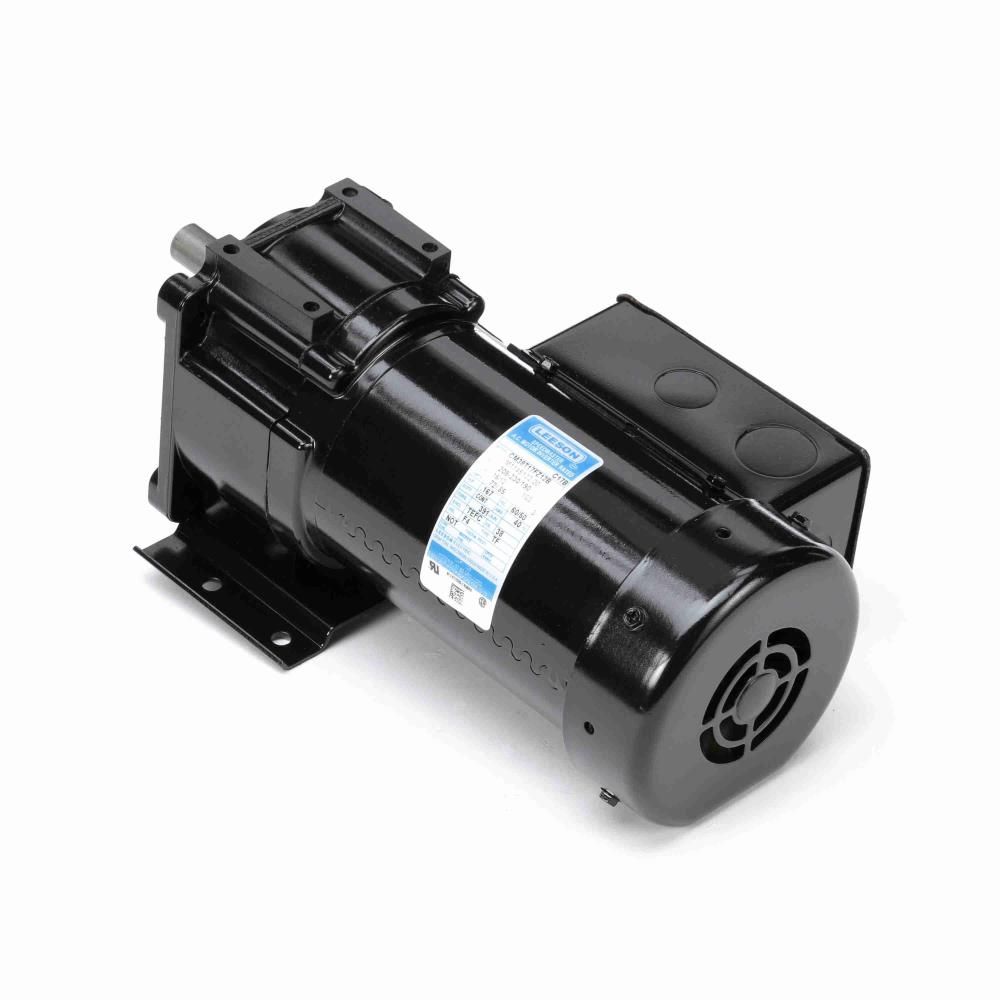

M1145122.00 Leeson, 1/6HP, 190V, Parallel Shaft Gearmotor
2 In Stock / Ready to Ship
Leeson M1145122.00 Parallel Shaft Gearmotor, 0.17 HP, 3 Ph, 60/50 Hz, 190 V, 16 RPM, 38 Frame, TEFC
Specifications
============
Phase: 3
Output HP: 1/6 Hp
Output KW: 0.12 kW
Voltage: 190 V
Speed: 16 rpm
Service Factor: 1
Frame: 38
Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection
Ambient Temperature: 40 °C
Frequency: 60/50 Hz
Current: 0.72 A
Duty: Continuous
Insulation Class: F
KVA Code: J
Drive End Bearing Size: 6201
Opp Drive End Bearing Size: 6201
UL:Recognized
CSA: Y
Rotation: Reversible
Mounting: Special
Shaft Type: Parallel
Overall Length: 11.63 in
Frame Length: 5.38 in
Shaft Diameter: 0.625 in
Shaft Extension: 1.5 in
Torque: 391 LB-IN
