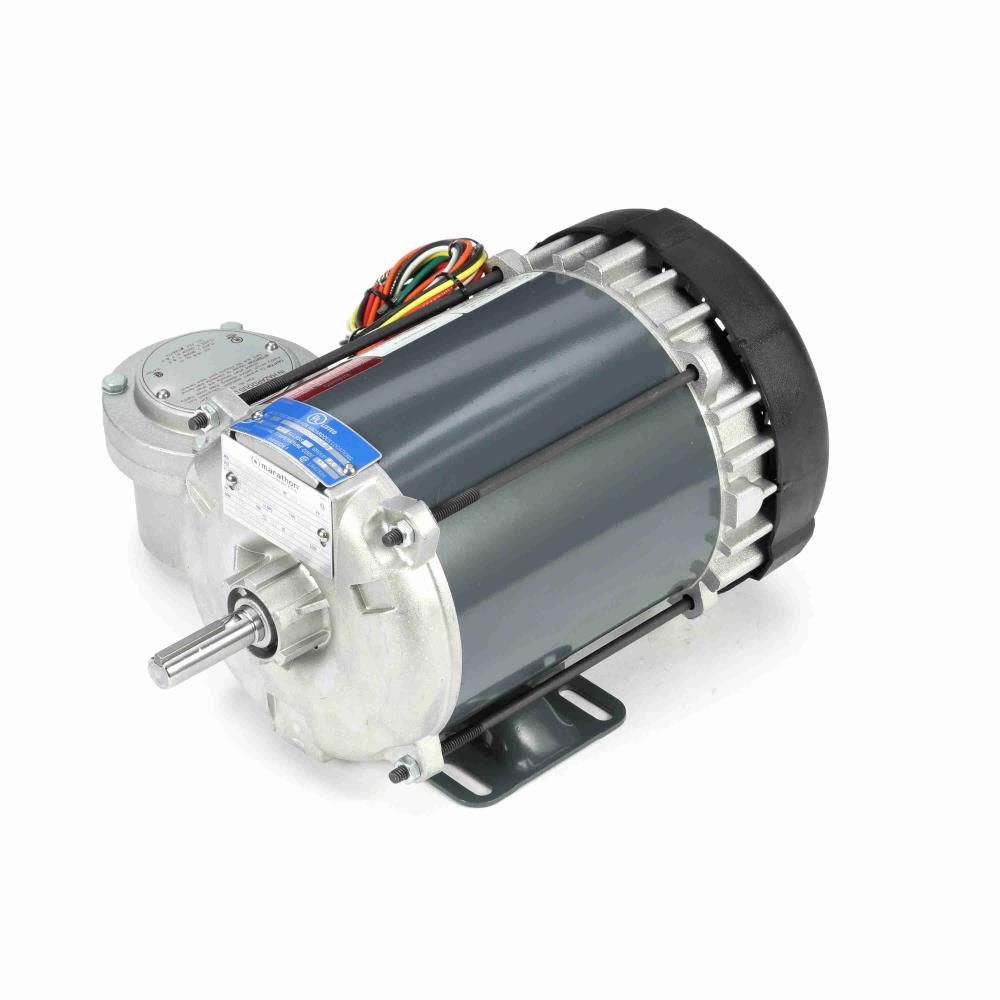

Marathon, G651, 1/3HP, Explosion Proof Motor

Model No: 056C17G5315
Catalog No: G651
Hazardous Duty® Explosion Proof Motor, 0.33 HP, 1 Ph, 60 Hz, 115/230 V, 1800 RPM, 56 Frame, EPFC

Nameplate Specifications
Phase 1 Output HP 0.33 Hp
Output KW 0.25 kW Voltage 115/230 V
Speed 1725 rpm Service Factor 1.00
Frame 56 Enclosure Explosion Proof Fan cooled
Thermal Protection Automatic Efficiency 55 %
Ambient Temperature 40 °C Frequency 60 Hz
Current 6.6/3.3 A Power Factor 60
Duty Continuous Insulation Class B
Design Code NO DESIGN CODE KVA Code N
Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203
UL UL Listed And CSA Certified CSA Y
CE N IP Code 54
Number of Speeds 1 Hazardous Location DIV 1 EXP PROOF CL I GR CD CL II GR
FG T3B
Technical Specifications
Electrical Type Capacitor Start Induction Run Starting Method Across The Line
Poles 4 Rotation Selective Counterclockwise
Resistance Main 0 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type NEMA 56 Overall Length 13.44 in
Frame Length 6.31 in Shaft Diameter 0.625 in
Shaft Extension 2 in Assembly/Box Mounting F1 ONLY
Connection Drawing 102005-84 Outline Drawing 104189-631
