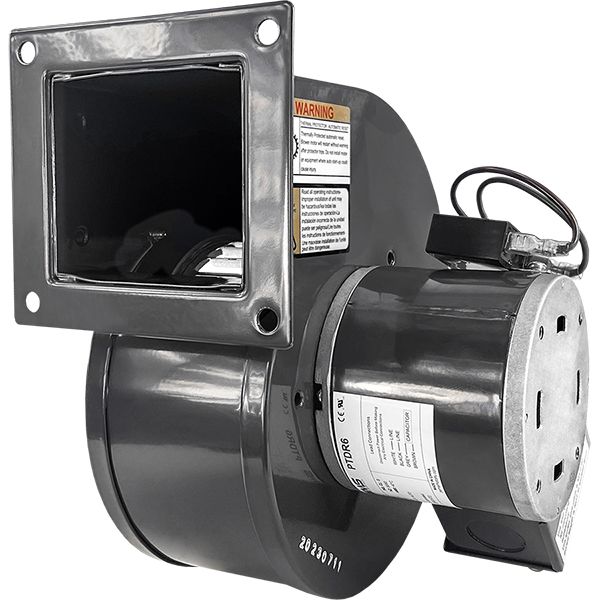

PTDR6, 1/25HP, 115V, Centrifugal Blower
35 In Stock / Ready to Ship
Pems PTDR6 EXACT REPLACEMENT MOTOR
We ship from several warehouses across the U.S. to get it to you FAST. We work hard to keep
our prices below our competition.
SPECIFICATIONS
================
Electrical Type PSC
HP 1/25
RPM 2450
Voltage 115 V
Overload Protection Automatic
Bearings Ball
Mounting Type All Position
Amperage 0.75 A
Insulation Class B
Outlet Flange Bolt Hole Dim 3 3/4" x 3 3/8"
Max Inlet Temperature 104
current AC
Outlet Shape Rectangular Flanged
Outlet Flange 4 7/16" x 4 1/16"
Enclosure ODP
Phase 1
Rotation CW
Frequency 50/60 Hz
Wheel Diameter 4 1/8"
Wheel Width 1 7/8"
Motor Diameter 3.3"
Outlet Height 2 5/8"
Inlet Diameter 3 3/4"
Duty Continuous
Certifications UL Approved
Tek4UFast is the leader in sorting out all these motor cross references .... Trades-people: When you need to replace a motor, for your convenience just SMS a picture of the nameplate to (603) 413-0404 and we will get you a quote ASAP. Get quotes on garage door openers, gate openers, electric switchgear, capacitors, fan blades, blower wheels, power drive (shafts, bearings, sprockets, sheaves, timing belts .....) via SMS picture as well.
ALL Motors are NEW, not factory seconds or less in ANY way from your original motor. Most every replacement motor is manufactured by the same manufacturer as the original and is the original manufacturer's identified replacement. All motors have a one-year factory warranty (or better). We strive hard to keep our prices below the competition. We ship to Canada, Mexico and most any country (we ship international).
We know you need it FAST. We ship from several warehouses strategically located across the U.S.:
CA,CT,IL,MI,MO,SC,TX. We strive to ship the same day.
We also take orders over the phone: (603) 413-0404 8:30-5:00 EST or fulfill quotes via email, send to
We offer Next Day Air - call for details.
