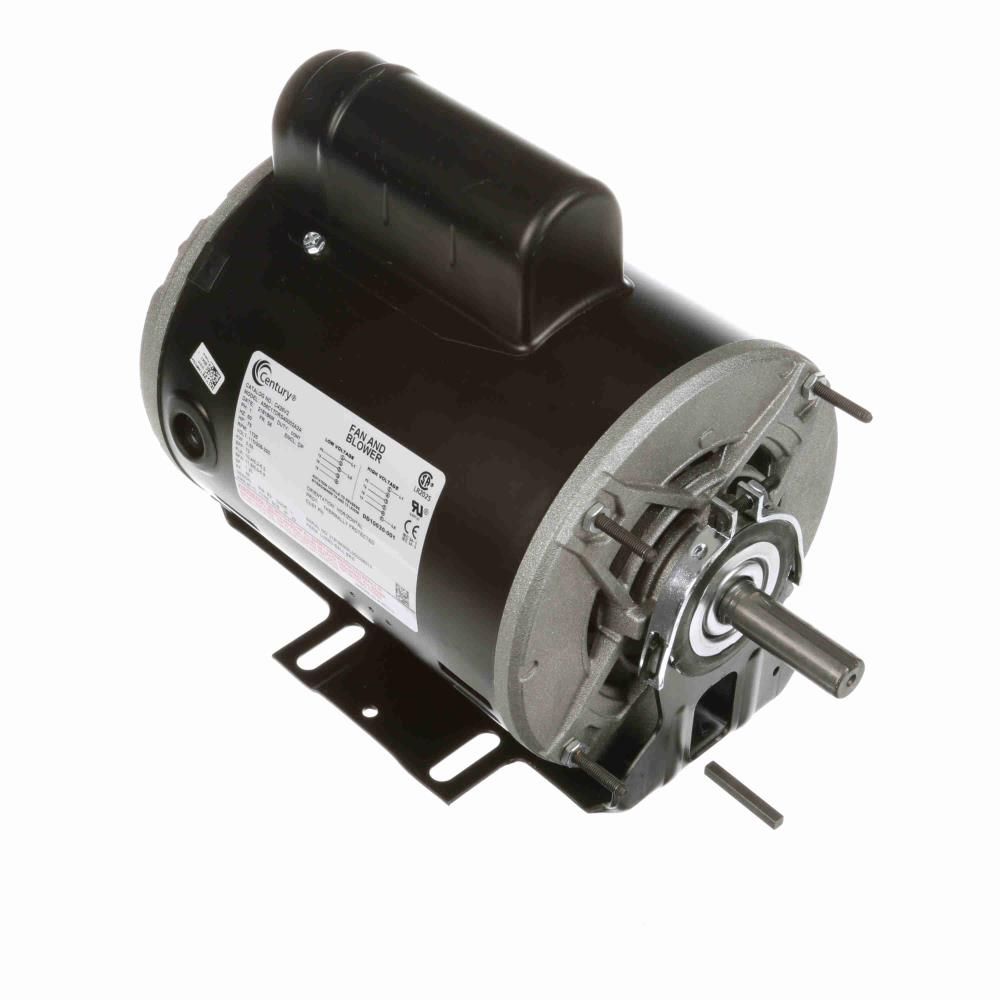

RL1324A, 3/4 HP, 1725 RPM, 115/208-230V, Replacement Fan and Blower Motor

35 In Stock / Ready to Ship

The now obsolete RL1324A has been replaced by Century with an updated motor.

Applications: Compressors, pumps, conveyors, milking machines, blowers, fans.

Features
==========================
Ambient Temperature: 40°C
Duty: Continuous
Insulation Class: B
Poles: 4
Service Factor: 1.25
Start Method: Across The Line

Specifications
=================
Electrical Type Cap Start
HP 3/4
KW 0.56
Frame 56
Diameter 6.5"
Enclosure ODP
Phase Single
Voltage 115/208-230
Rotation REV
Material Rolled Steel
Bearings Type Ball / Ball
Mounting Resilient Base
Amperage 10.4/5.2-5.2
Bearings SE Type Ball
Shaft Type NEMA 56
Bearings OSE Type Ball
Shaft Extension 1.960"
Shaft Diameter 0.625"

Certifications
===========
CE Y
CSA Y
UL Recognized

Shipping
==============
Length 16.00"
Width 8.00"
Height 10.00"
Weight 27.27 LBS
Country of Origin Mexico
