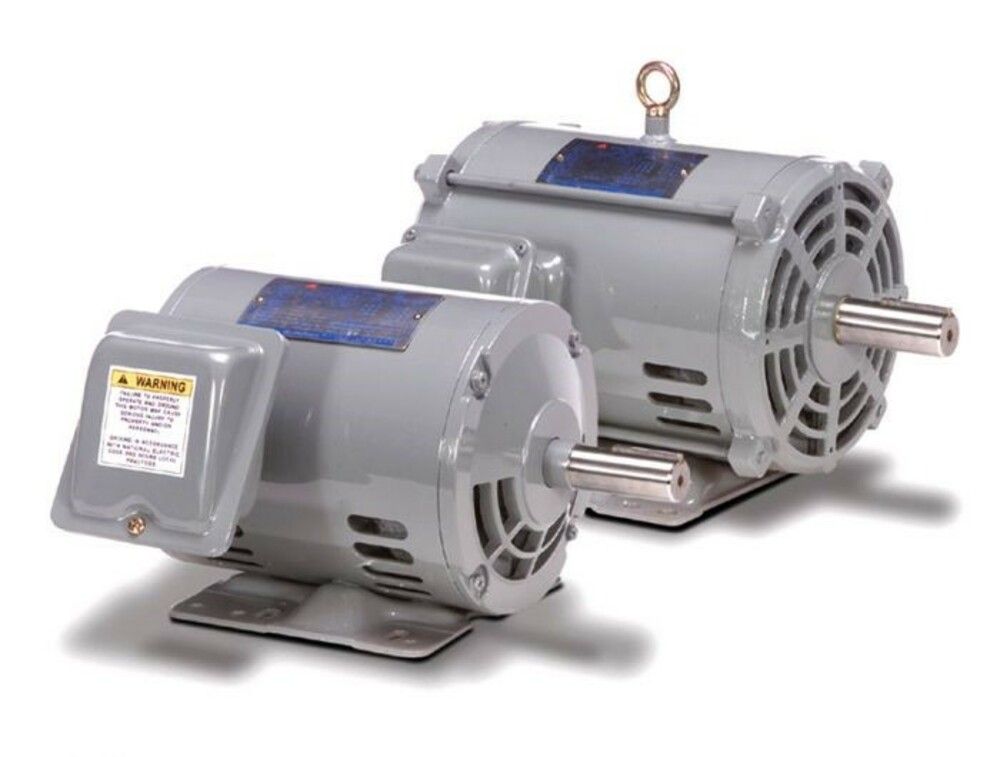

TECO (Westinghouse), DTP0054, 5HP, 3 Phase, 184T Frame, Industrial Motor
9 In Stock / Ready to Ship
TECO (Westinghouse), DTP0054, 5HP, 3 Phase, 184T Frame, Industrial Motor
Electrical Type: Three Phase | Phase: Three | Frame: 184T | HP: 5 | Enclosure: ODP | Voltage: 230/460 | RPM: 1800 | Amperage: 13.6 | Material: Rolled Steel | Power Factor: 77.0 | Frequency(hz): 60/50 | Efficiency: 89.5 | Service Factor: 1.15/1.0
Motor Specifications
====================
Electrical Type Three Phase
Phase Three
Frame 184T
HP 5
Enclosure ODP
Voltage 230/460
RPM 1800
Amperage 13.6
Material Rolled Steel
Power Factor 77.0
Frequency(hz) 60/50
Efficiency 89.5
Service Factor 1.15/1.0
Packaging
================
Weight (lbs) 94
Applications
==================
Fans & Blowers
Compressors
Pumps
Fire Pumps
HVAC Equipment
Features
======================
Ambient (Celsius): 40
Insulation Class: F
FL PF (%): 77.0
About This Product
=======================================
Usable on 200 & 208V
Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques
Rolled Steel Frame and Main Conduit Box
Grounding Terminal Inside Main Conduit Box
Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
Designed for 40C Ambient Temperature(1)
Designed for 3300 ft. Elevation(2)
Bi-Directional Rotation
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Premium - Blue - Munsell 5PB 3/8, High Efficiency - Light Gray - Munsell N5.0
Double Shielded Bearings Pre-Packed with MULTEMP SRL (Non-regreasable)
Stainless Steel Nameplate
New Dual Column Design Nameplate as Standard (60/50 Hz)
Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2(3,4)
Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
9 Leads for 5 HP and Smaller;
12 Leads for 7.5 HP and Larger
Motors are U.L. Recognized for United States and Canada, CSA Approved and CE Marked
