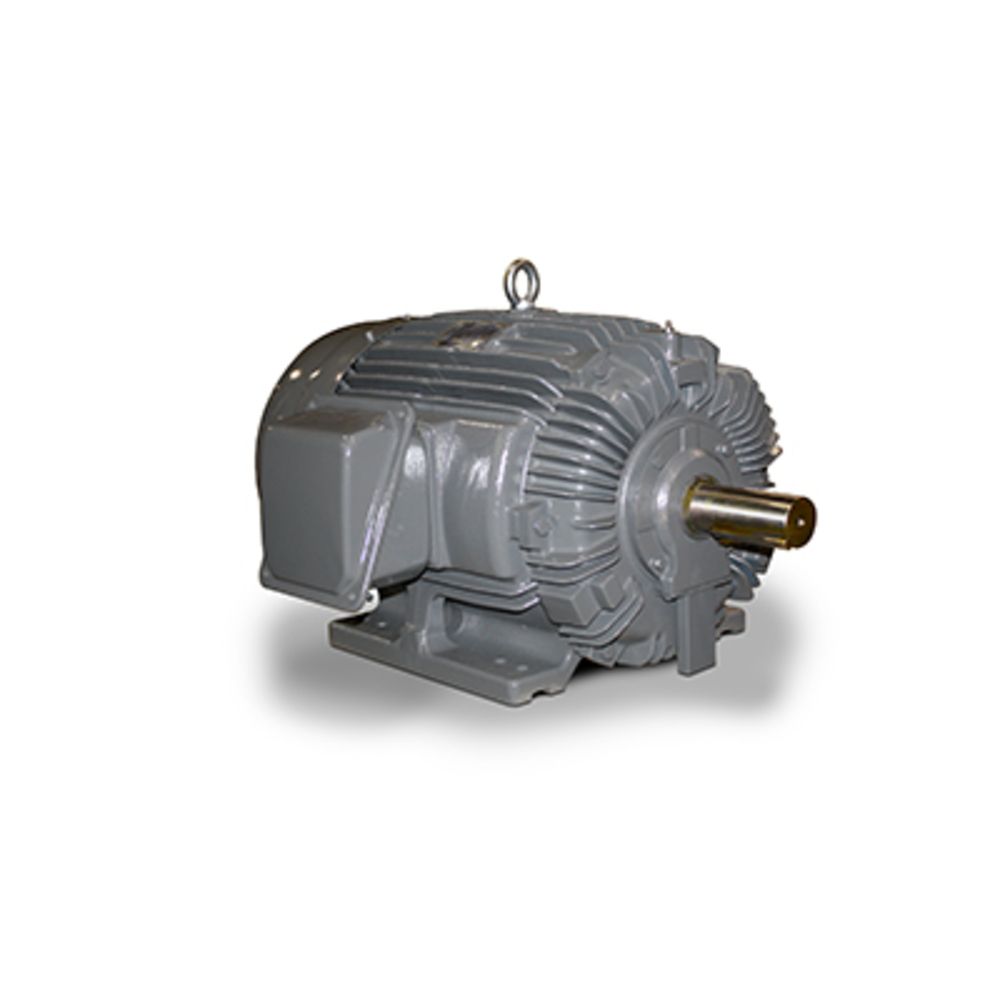

TECO (Westinghouse), NP0252, 25 HP, TEFC, 284TS Frame, 208-230/460VAC, 60Hz

3 In Stock / Ready to Ship

Electrical Type: Three Phase | Phase: Three | Frame: 284TS | HP: 25 | Enclosure: TEFC | Voltage: 230/460 | RPM: 3600 | Amperage: 27.8 | Material: Cast Iron | Power Factor: 91.0 | Frequency(hz): 60/50 | Efficiency: 92.4 | Service Factor: 1.15/1.0

Motor Specifications
======================
Electrical Type Three Phase
Phase Three
Frame 284TS
HP 25
Enclosure TEFC
Voltage 230/460
RPM 3600
Amperage 27.8
Material Cast Iron
Power Factor 91.0
Frequency(hz) 60/50
Efficiency 92.4
Service Factor 1.15/1.0

Packaging
==============
Weight (lbs) 460

Applications
=================
Fans & Blowers
Compressors
Pumps
Mixers
Crushers z Conveyors

Features
===================
Ambient (Celsius): 40
Insulation Class: F
FL PF (%): 91.0

About This Product
===========================
Enclosure: Totally Enclosed Fan Cooled (IP54 )
Voltage: 230/460V (Usable on 208V); 150HP and Larger is 460V Only(1)
Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
CSA Certified for Class I, Div. 2, Groups B, C, D - Temp Code T3C Minimum
Class F Insulation
Class B Temperature Rise
NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C
Cast Iron Frame and End Brackets; Rolled Steel Fan Cover and Main Conduit Box
Grounding Terminal Inside Main Conduit Box
Oversized Main Conduit Box Rotatable in 90 Degree Increments - F1 Mounted
Designed for 40C Ambient Temperature(2)
Designed for 3300 ft. Elevation(3)
Bi-Directional Rotation
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Dark Gray - Munsell 7.5B 3.5/0.5
Double Shielded Bearings Pre-Packed with MULTEMP SRL for F# 140T - 280T (Non-regreasable)
High Quality Ball (or Roller) Bearings Regreasable with Mobil Polyrex� EM for F# 280TS and Larger
Automatic Grease Discharge Fittings on Regreasable Models
Labyrinth Type Metal Flinger on Both Ends for F# 280TS and Larger
Cast Iron Inner and Outer Bearing Caps for F#280TS and Larger
Stainless Steel Nameplate
New Dual Column Design Nameplate as Standard (60/50 Hz)
Suitable for Inverter Use per NEMA
