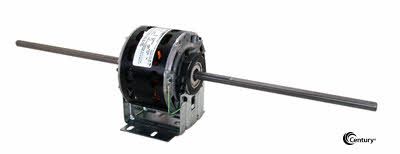

UR51A5AT3A5210, Fasco, Replacement Motor
35 In Stock / Ready to Ship
The UR51A5AT3A5210 has been discontinued and replaced with an updated motor.

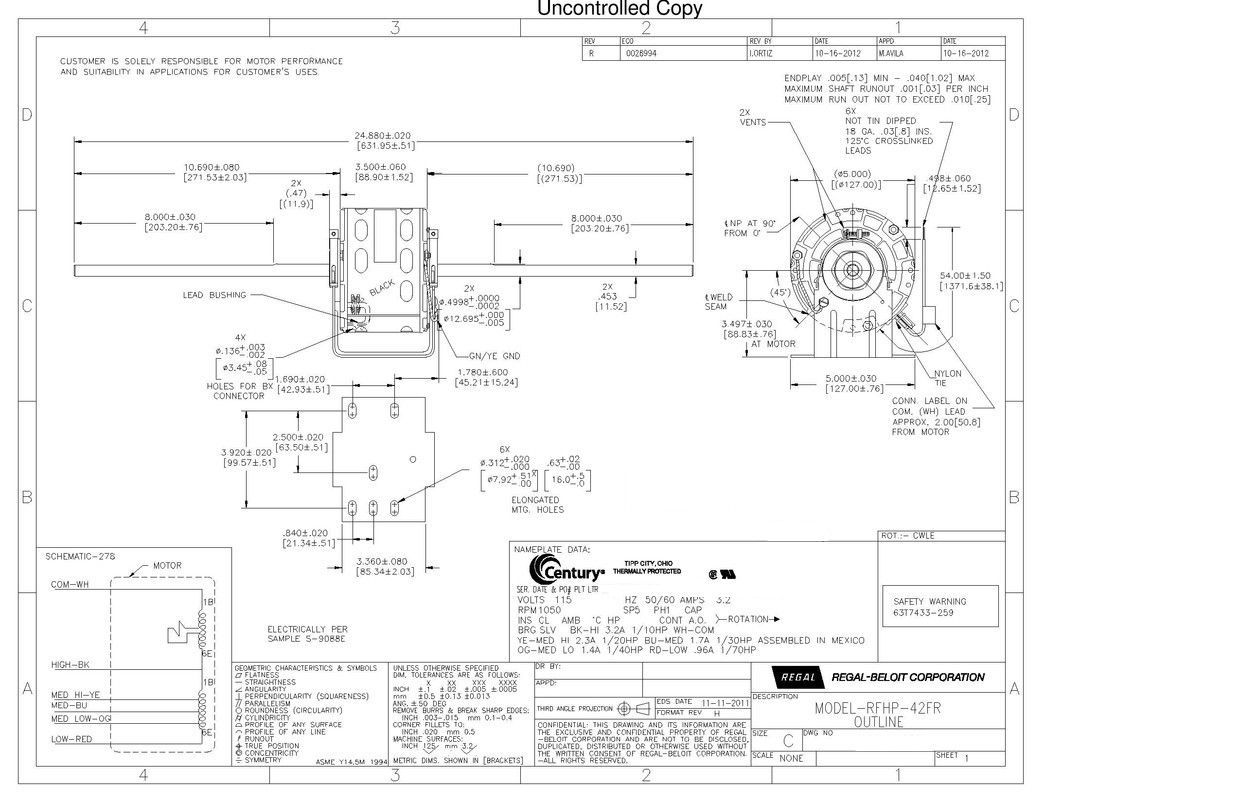

The specs and drawing below are for your assurance of same fit and function
Notes: Selection of speed taps to be determined by user
[Electrical Type] PSC [HP] 1/10 [KW] 0.07 [RPM] 1050 [Frame] 42 [Enclosure] OAO [Phase] Single [Voltage] 115 [Rotation] CWLE [Overload] Auto [Material] Rolled Steel [Bearings Type] Ball / Ball [Bearings SE Type] Ball [Bearings OSE Type] Ball [Mounting] Resilient Base [Orientation] Horizontal [Amperage] 1.62 [Shaft Type] Flat [Shaft Diameter] 1/2" [Shaft Length] 10.690" | 10.690"
Features
======================
Ambient Temperature: 40°C
Duty: Continuous Air Over
Frequency: 60 HZ
Insulation Class: B
Poles: 6
Service Factor: 1.00
Start Method: Across The Line
Frame Length: 3.56"
Details
============================
Fan Coil - Dual Wheel Blower Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC);
Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor) **SEE LINK BELOW
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
54" Leads
Resilient Base
Specifications
====================
Electrical Type PSC
HP 1/10
KW 0.07
Frame 42
Enclosure OAO
Phase Single
Voltage 115
Rotation CWLE
Overload Auto
Material Rolled Steel
Bearings Type Ball / Ball
Mounting Resilient Base
Orientation Horizontal
Amperage 1.62
Bearings SE Type Ball
Shaft Type Flat
Shaft Diameter 1/2"
Shaft Length 10.690" | 10.690"
Bearings OSE Type Ball
ALL Motors are NEW, not factory seconds or lesser in ANY way from your original motor. Most every replacement motor is manufactured by the same manufacturer as the original and is the original manufacturer's identified replacement. All motors have a one-year factory warranty (or better). We strive hard to keep our prices below the competition. We ship to Canada, Mexico and most any country (we ship international).
We know you need it FAST. We ship from several warehouses strategically located across the U.S.:
CA,CT,IL,MI,MO,SC,TX. We strive to ship the same day.
We also take orders over the phone: (603) 413-0404 8:30-5:00 EST or fulfill quotes via email, send to
We offer Next Day Air - call for details.
UR51A5AT3A5210 Replacement Motor
