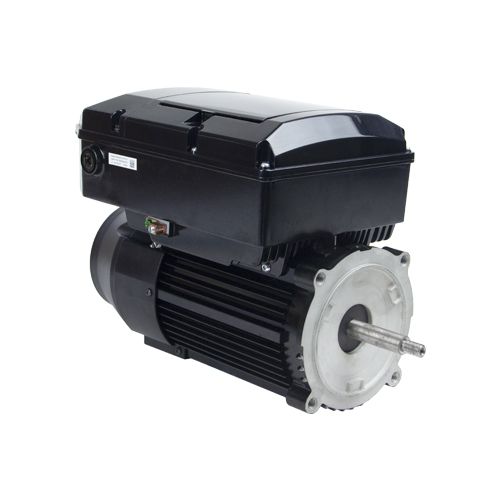

US-Nidec, NPTT270, 2.25-2.70THP, 230V, Pool & Spa Motor
US Nidec NPTT270
THP: 2.25-2.70 | Frame: 48Y | Voltage: 230 | Amperage: 11.1 | Efficiency: 81% | Premium Energy Efficient: TRUE | Mounting Type: 56J | Body Length: 10.01 | Frequency: 50/60 Hz | NEPTUNE Variable
SPECIFICATIONS:
======================================
THP 2.25-2.70
Frame 48Y
Voltage 230
Amperage 11.1
Efficiency 81%
Premium Energy Efficient TRUE
Mounting Type 56J
Body Length 10.01
Frequency 50/60 Hz
Fully Integrated Variable Speed Motor & Control
Brushless Permanent Magnet (BPM) Motor
Proposed DOE Law & CEC Title 20 Compliant
TEFC -- IPX5 Enclosure
Shaft Threads -- (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
Low Temperature Monitor
Fully Functional User Interface
Up to Seven Daily Schedules Can Be Programmed
Adjustable Priming Time & Speed
Menu Keypad Lockout
Designed For Quiet Operation
Ability to communicate with pool control systems
Tek4UFast is the leader in sorting out all these motor cross references .... Trades-people: When you need to replace a motor, for your convenience just SMS a picture of the nameplate to (603) 413-0404 and we will get you a quote ASAP. Get quotes on garage door openers, gate openers, electric switchgear, capacitors, fan blades, blower wheels, power drive (shafts, bearings, sprockets, sheaves, timing belts .....) via SMS picture as well.
ALL Motors are NEW, not factory seconds or lesser in ANY way from your original motor. Most every replacement motor is manufactured by the same manufacturer as the original and is the original manufacturer's identified replacement. All motors have a one-year factory warranty (or better). We strive hard to keep our prices below the competition. We ship to Canada, Mexico and most any country (we ship international).
We know you need it FAST. We ship from several warehouses strategically located across the U.S.:
CA,CT,IL,MI,MO,SC,TX. We strive to ship the same day.
We also take orders over the phone: (603) 413-0404 8:30-5:00 EST or fulfill quotes via email, send to
We offer Next Day Air - call for details.
